How does a CNC auto tool changer work?

Currently available on our full-size PRSalpha Gantry tools, an Automatic Tool Changer (ATC) reduces production time by automatically changing cutters between tool paths, thus eliminating the need for the CNC operator to change and zero tools individually.

What is robot programming?

Robot programming is programming the PC/SBC/microcontroller/PLC inside a robot for performing a specific application using actuators and feedback from various sensors. The robot applications include pick and place of the object, moving robot from A to B, etc.

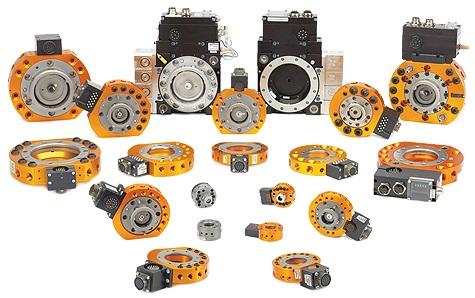

How does an automatic robot tool changer work?

The tool change command is given to the machine via the computer. The tool to be changed assumes a fixed position known as the “tool change position.” The ATC spindle moves to that position to pick up the tool. The z-axis moves between the machine tool rack/rotary to pick up/drop off tooling.

What is the difference between NC and CNC machine?

NC machine is the machine that is controlled by a set of instructions in the form of numbers, letters, and symbols called a program. CNC machine is used to control motions of the workpiece and tool with a computer program written in alphanumeric data.

What are the two basic types of robotic tool changers?

Name the two major types of ATCs and briefly describe the difference between the two. The carousel-type tool changer stores the tools in a large circular disc. The swing-arm-type tool changer uses a double ended arm to change tools. Tools are stored in a tool storage magazine.

What is automatic tool changer in CNC?

An automatic tool changer (ATC) is used in computerized numerical control (CNC) machine tools to improve the production and tool carrying capacity of the machine. ATCs change tools rapidly, reducing non-productive time. They are generally used to improve the capacity of the machines to work with a number of tools.
